1. Understanding What a Bathroom Plumbing Rough-In Means

A bathroom plumbing rough-in is one of the most important stages of a bathroom renovation or new construction project. It is the phase where all essential plumbing components are installed before the walls, floors, and ceilings are finished. During this stage, plumbers position drain pipes, water supply lines, vent pipes, and connections for fixtures such as toilets, sinks, showers, and bathtubs.

Many homeowners focus on choosing tiles, vanities, lighting, and finishes, but the hidden plumbing system determines how well the bathroom will function for years. A mistake made during the rough-in process can lead to slow drainage, leaks, unpleasant odors, water pressure issues, or expensive repairs after the walls have already been closed.

Learning how to install a new bathroom plumbing rough-in helps homeowners understand what happens behind the scenes and make better decisions during a remodeling project. Whether you are building a completely new bathroom or relocating existing fixtures, careful planning is the foundation of a successful installation.

Go Green Plumbing, Heating, Air & Electrical / go green plumbing heating and air

GreensboroGuilford CountyNorth Carolina

300 Pomona Dr, Greensboro, NC 27407, USA

Why the Rough-In Stage Matters

The rough-in stage creates the foundation for every visible bathroom feature. The toilet must align correctly with the drain opening, the shower must have proper water connections, and the sink must connect efficiently to the drainage system.

A properly installed plumbing rough-in provides:

• Reliable water delivery to bathroom fixtures
• Effective wastewater removal
• Proper ventilation to prevent sewer gas problems
• Easier fixture installation later
• Compliance with local building codes

Many professional contractors consider plumbing rough-in work the "skeleton" of the bathroom. Once the pipes are installed correctly, the remaining construction steps become much smoother.

Bill Trombly Plumbing - Heating - Cooling - Electric / jim trombly heating

ManchesterHillsborough CountyNew Hampshire

76 Maple St, Manchester, NH 03103, USA

2. Planning the Bathroom Layout Before Installing Pipes

The first step in any bathroom plumbing installation is creating a detailed layout plan. Before cutting pipes or opening floors, determine exactly where every fixture will be placed.

Mapping Fixture Locations

A typical bathroom contains several plumbing connections, including:

• Toilet drain and water supply connection
• Bathroom sink drain and hot/cold water lines
• Shower or bathtub supply pipes
• Vent connections

The location of these fixtures affects the entire plumbing system. Moving a toilet a few feet may require major changes because toilet drains are larger and usually connect directly to the main waste line.

For example, a homeowner renovating an older bathroom may want to move the toilet next to a new vanity. While the change may look simple, the plumbing underneath the floor may not allow an easy adjustment. Planning early prevents unexpected costs.

Checking Local Plumbing Requirements

Building codes vary depending on location, but most areas have rules regarding pipe sizes, fixture spacing, venting, and drainage slopes. A bathroom plumbing rough-in must meet these requirements to pass inspections.

Before beginning work, review local regulations or consult a qualified plumbing professional. Proper planning can prevent having to remove finished walls or floors later.

3. Installing Drainage and Vent Pipes Correctly

The drainage system is responsible for carrying wastewater away from bathroom fixtures. Unlike water supply pipes, drainage pipes rely heavily on gravity, which means correct positioning and slope are extremely important.

Choosing the Correct Drain Pipe Sizes

Different fixtures require different drain sizes. Toilets typically use larger drain pipes because they handle solid waste, while sinks and showers usually use smaller drainage connections.

Using incorrect pipe sizes can create problems such as:

• Frequent clogs
• Slow draining water
• Overflow risks
• Unpleasant smells

Installing Proper Ventilation

Vent pipes are a critical part of bathroom plumbing that many homeowners overlook. These pipes allow air to enter the drainage system, helping wastewater flow smoothly and preventing pressure problems.

Without proper venting, a bathroom may experience gurgling drains, slow drainage, or sewer odors. A professional plumbing system always includes correctly positioned vents connected to the drainage network.

Maintaining Proper Drain Slope

Drain pipes need enough slope to allow water and waste to move efficiently. Too little slope can cause standing water, while too much slope may allow water to move faster than solid waste.

Professional plumbers carefully measure pipe angles during the rough-in stage to create a balanced drainage system.

4. Installing Hot and Cold Water Supply Lines

After planning drainage, the next step is installing water supply lines. These pipes bring clean water to bathroom fixtures and must be positioned accurately for future connections.

Understanding Supply Pipe Placement

Most bathroom fixtures require both hot and cold water connections. During the rough-in stage, plumbers install pipes inside walls or floors before finishing materials are added.

Important considerations include:

• Correct height for sink connections
• Proper shower valve placement
• Easy access for future maintenance
• Protection from freezing temperatures

Selecting Plumbing Materials

Modern bathroom plumbing systems often use materials such as PEX, copper, or other approved piping products. Each material has different advantages related to durability, installation speed, and cost.

PEX piping, for example, has become popular in many residential projects because it is flexible and easier to install in complicated layouts. Copper remains widely used because of its long history and durability.

5. Common Mistakes During Bathroom Plumbing Rough-In Installation

Even experienced DIY renovators can make mistakes during a bathroom plumbing rough-in. Understanding common problems can help prevent costly repairs.

Incorrect Fixture Measurements

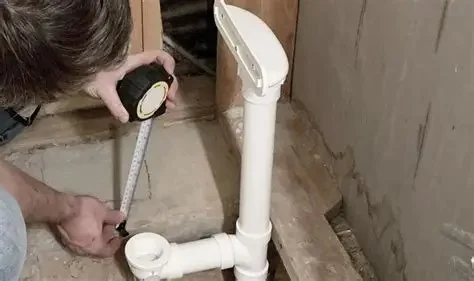

One of the most common errors is installing pipes without confirming fixture dimensions. A toilet flange placed incorrectly or a shower valve installed too high can create major problems later.

Always measure the actual fixtures or manufacturer specifications before completing rough-in work.

Ignoring Future Maintenance

A plumbing system should not only work today but also remain serviceable in the future. Poorly planned pipe placement can make repairs difficult.

Smart plumbing layouts consider access points, shutoff valves, and possible upgrades.

Skipping Pressure Testing

Before closing walls, the entire plumbing system should be tested for leaks. Discovering a leaking pipe after drywall installation can turn a small problem into a major renovation expense.

6. Tools and Materials Needed for a Successful Installation

A bathroom plumbing rough-in requires specialized tools and quality materials. Professional plumbers use equipment designed to create accurate connections and reliable results.

Common Tools Used

• Pipe cutters
• Measuring tools
• Level tools
• Pipe wrenches
• Pressure testing equipment
• Pipe joining tools

Why Quality Materials Matter

Plumbing is not an area where cutting costs usually pays off. Cheap materials may fail prematurely and cause water damage inside walls or floors.

Investing in reliable plumbing components helps protect your home and reduces future maintenance expenses.

7. Completing the Bathroom Plumbing Rough-In Successfully

Once all pipes are installed, the rough-in process enters the inspection and preparation stage. Before walls and floors are closed, every connection should be carefully checked.

Final Inspection Checklist

A complete bathroom plumbing rough-in should include:

• Correct drain pipe installation
• Proper vent connections
• Secure water supply lines
• Leak testing
• Accurate fixture positioning

Many homeowners discover that working with experienced professionals saves time and prevents expensive mistakes. If you are planning a bathroom renovation or new construction project, Local Practice Plumbing Services can help you understand the right materials, installation methods, and solutions for your specific bathroom design.

Making the Right Choice for Your Bathroom Project

Installing a new bathroom plumbing rough-in is a detailed process that requires planning, precision, and knowledge of plumbing systems. While some homeowners enjoy taking on renovation projects themselves, plumbing mistakes can create serious damage if they are not handled correctly.

Whether you are upgrading an outdated bathroom, adding a new bathroom to your home, or preparing a complete remodel, understanding the rough-in process helps you make confident decisions. Explore professional plumbing solutions, quality materials, and expert guidance to ensure your bathroom plumbing system performs reliably for many years.
